夹紧力kN
手动扭矩Nm 标准型
3610V 3630V
14 2.9 2.9
27 7.8 7.8
41 9.9 9.9
54 13.4 13.4
68 17.0 17.0
81 19.7 19.7
95 24.6 24.6
108 28.3 28.3

夹紧力kN
液压MPa 液压型
3610H 3630H
3 7 7
6 14 14
8 21 21
11 28 28
14 35 35
17 42 42
19 49 49
22 56 56
液压排量CC 19 19

注：夹紧力为参考值


夹紧力kN
气压Bar 气动型
3610A 3630A
0.7 1.4 1.4
1.4 3.7 3.7
2.1 5.7 5.7
2.8 7.9 7.9
3.5 9.8 9.8
4.1 12.1 12.1
4.8 14.4 14.4
5.5 16.9 16.9
6.2 19.4 19.4
6.9 22.2 22.2
参数表 mm(in)
标准型 液压型 气动型
3610V 3630V 3610H 3630H 3610A 3630A
A 80.95 80.95 80.95 80.95 80.95 80.95
B 152.40 152.40 152.40 152.40 152.40 152.40
C 382.52 328.68 382.52 328.68 382.52 328.68
D 69.85 69.85 69.85 69.85 69.85 69.85
E 17.48 17.48 17.48 17.48 17.48 17.48
F 37.72 37.72 37.72 37.72 37.72 37.72
G 69.85 69.85 69.85 69.85 69.85 69.85
H 44.07 44.07 44.07 44.07 44.07 44.07
J 18.42 18.42 18.42 18.42 18.42 18.42
K 114.30 114.30 114.30 114.30 114.30 114.30
L 57.15 57.15 57.15 57.15 57.15 57.15
M 127.00 127.00 127.00 127.00 127.00 127.00
N 23.80 23.80 23.80 23.80 23.80 23.80
O 98.43 98.43 98.43 98.43 98.43 98.43
P (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13) (1/2-13)
Q 50.80 50.80 50.80 50.80 50.80 50.80
R 107.95 107.95 107.95 107.95 107.95 107.95
S 76.20 76.20 76.20 76.20 76.20 76.20
T 35.03 35.03 35.03 35.03 35.03 35.03
U 16.00 16.00 16.00 16.00 16.00 16.00
V 49.28 49.28 49.28 49.28 49.28 49.28
W (3/4) (3/4) (3/4) (3/4) (3/4) (3/4)
X 143.26 143.26 143.26 143.26 143.26 143.26
Y 16.00 16.00 16.00 16.00 16.00 16.00
Z 152.40 152.40 152.40 152.40 152.40 152.40

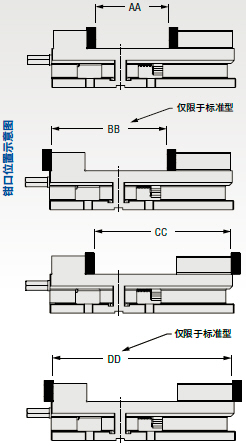

AA 152.40 101.60 152.40 101.60 152.40 101.60
BB 241.30 190.50 - - - -
CC 285.75 234.95 285.75 234.95 285.75 234.95
DD 374.70 323.90 - - - -
EE - - 61.21 61.21 - -
FF - - 49.28 49.28 - -
GG - - 85.73 85.73 - -
HH - - - - 183.39 183.39
JJ – – – – (2.100) (2.100)
KK – – – – (1.030) (1.030)
LL – – – – (5.000) (5.000)
MM (2.500) (2.500) (2.500) (2.500) (2.500) (2.500)
NN (0.344) (0.344) (0.344) (0.344) (0.344) (0.344)
OO (1/2) (1/2) (1/2) (1/2) (1/2) (1/2)
PP (0.671) (0.671) (0.671) (0.671) (0.671) (0.671)
QQ (0.625) (0.625) (0.625) (0.625) (0.625) (0.625)
RR 16MM 16MM 16MM 16MM 16MM 16MM
SS (4.000) (4.000) (4.000) (4.000) (4.000) (4.000)
TT (6.000) (6.000) (6.000) (6.000) (6.000) (6.000)
UU 100MM 100MM 100MM 100MM 100MM 100MM
重量kg 32 29 34 32 34 32

KHP3H，见第74页
KHP3F，见第74页
自动化泵，见第74页
