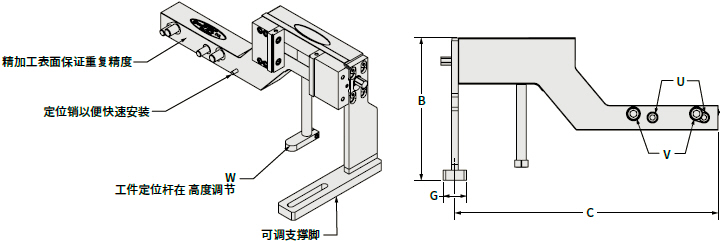

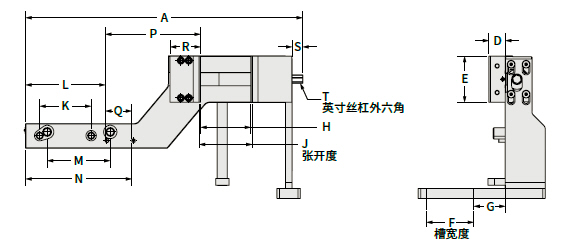

| 参数表mm(in) |
|
SDW25II |
SDW35 |
| A |
369.82 |
529.84 |
| B |
203.2/211.1 |
248.9/271.8 |
| C |
349.25 |
503.17 |
| D |
26.92 |
31.37 |
| E |
63.50 |
88.14 |
| F |
76.20 |
90.42 |
| G |
13.46 |
60.45 |
| H |
0.0/63.5 |
0.0/95.3 |
| J |
- |
6.4/101.6 |
| K |
98.43 |
98.43 |
| L |
152.40 |
152.40 |
| M |
- |
120.65 |
| N |
- |
203.20 |
| P |
81.28 |
182.12 |
| Q |
- |
50.80 |
| R |
44.45 |
58.42 |
| S |
14.22 |
20.32 |
| T |
(3/8) |
(9/16) |
| U |
(1/2-13) |
(1/2-13) |
| V |
- |
(5/8-11) |
| W |
127.00 |
146.05 |
| 重量kg |
9 |
20 |
夹紧力表
| SDW25II型钳 |
| 扭矩Nm |
夹紧力kN |
| 5.4 |
2.6 |
| 8.1 |
3.9 |
| 10.8 |
5.0 |
| 13.6 |
6.9 |
| 16.3 |
10.9 |
| SDW35型钳 |
| 扭矩Nm |
夹紧力kN |
| 6.8 |
2.2 |
| 13.6 |
4.4 |
| 20.3 |
6.7 |
| 27.1 |
8.9 |
| 33.9 |
11.1 |
| 40.7 |
13.3 |
| 47.5 |
15.6 |
| 54.2 |
17.8 |
|
